Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
- Hand-built and hand-wired 120-Watt Class A/B amplifier driven by 4 x EL34 tubes (now fully compatible with 6L6 and 5881, etc.)
- Modern 3-channel preamp design (Clean, Crunch, Lead) featuring 4 x 12AX7 tubes for boutique clean and face-melting hi-gain tone
- Integrated high-class reverb is assignable per channel and has a dedicated Reverb control
- Revolutionary INFINIUM Tube Life Multiplier technology:- Extends the life of your amplifier's expensive power tubes up to 20 times.- Provides incredible reliability and consistent tone over the complete lifespan of your tubes - No need for expensive matched tube sets- Allows you to mix and match any combination of compatible tube types and brands - Monitors performance of each power tube continuously and displays defective tubes to allow for easy and individual replacement
- XL switches on the Lead and Crunch channels for killer low end control
- Adjustable Noise Gate available on Lead channel
- Fully independent Equalizer sections for each channel with dedicated Bass, Mid and Treble control
- Classic Presence control for efficient midrange sound shaping
- Remote controlled FX Loop with adjustable Send and Return level also serves as Boost function
- Heavy-duty footswitch for Channel selection and FX Loop/Boost function included
- Line output with dedicated Level control
- Impedance switch (4, 8 and 16 Ohms) to match virtually any speaker cabinet
DESCRIPTION

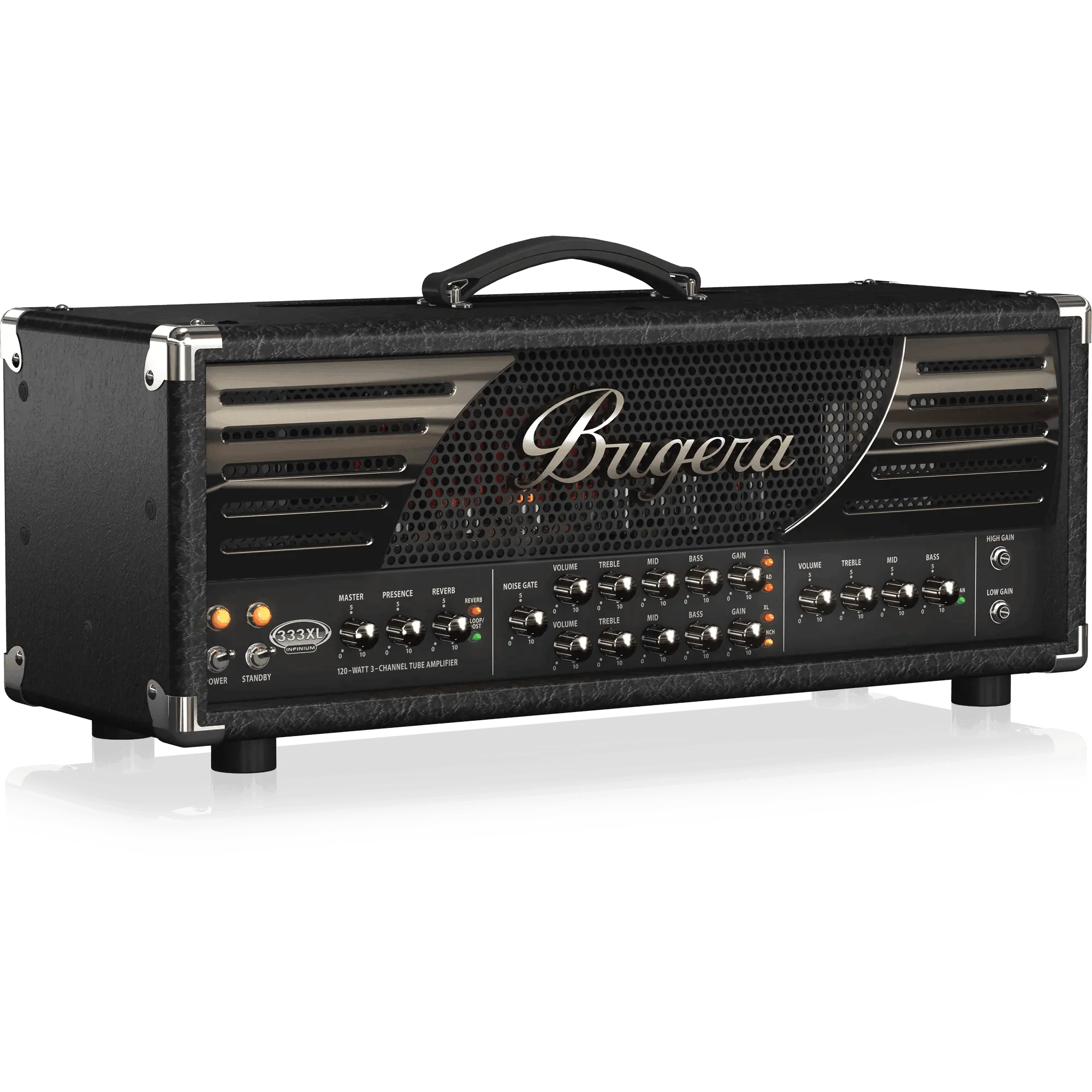

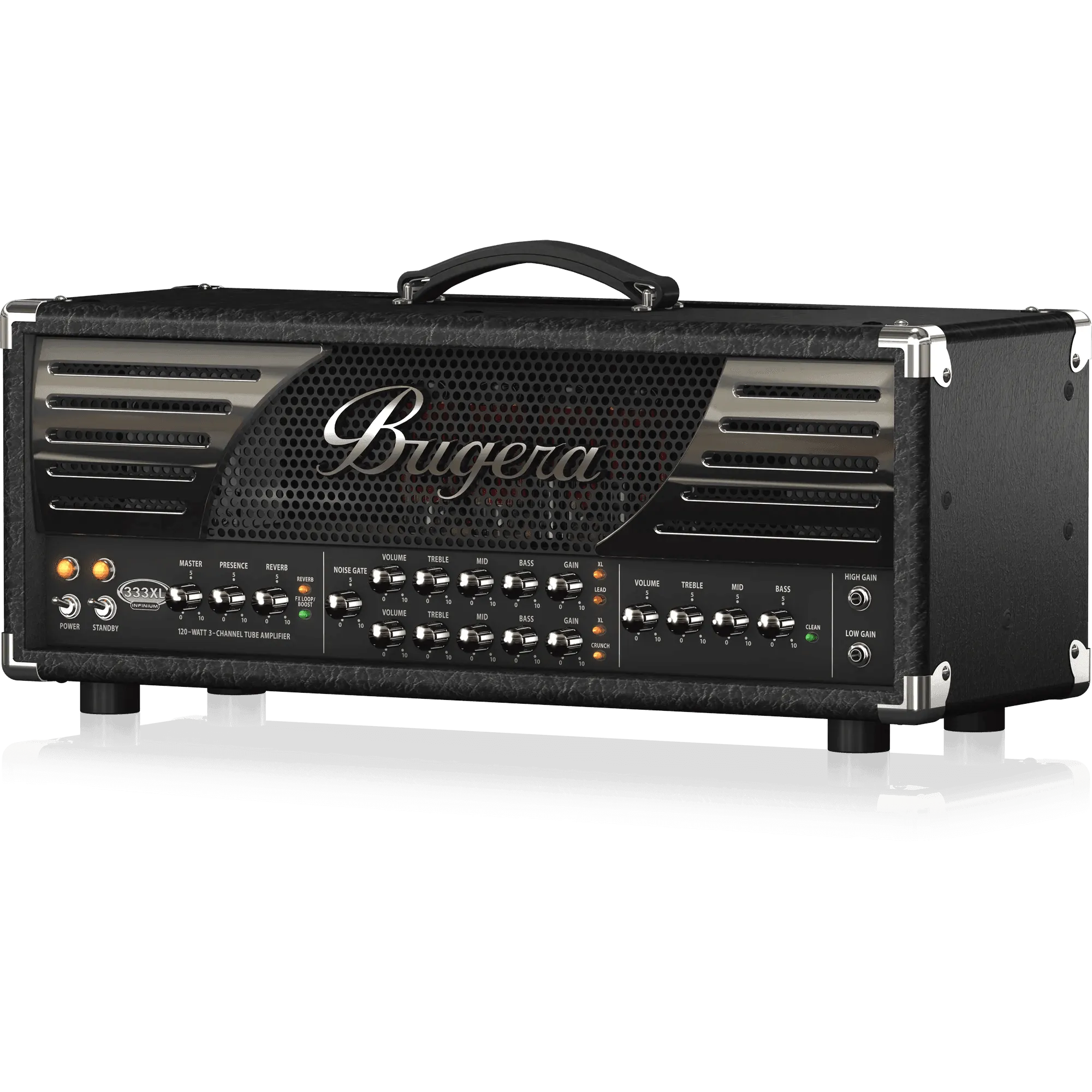

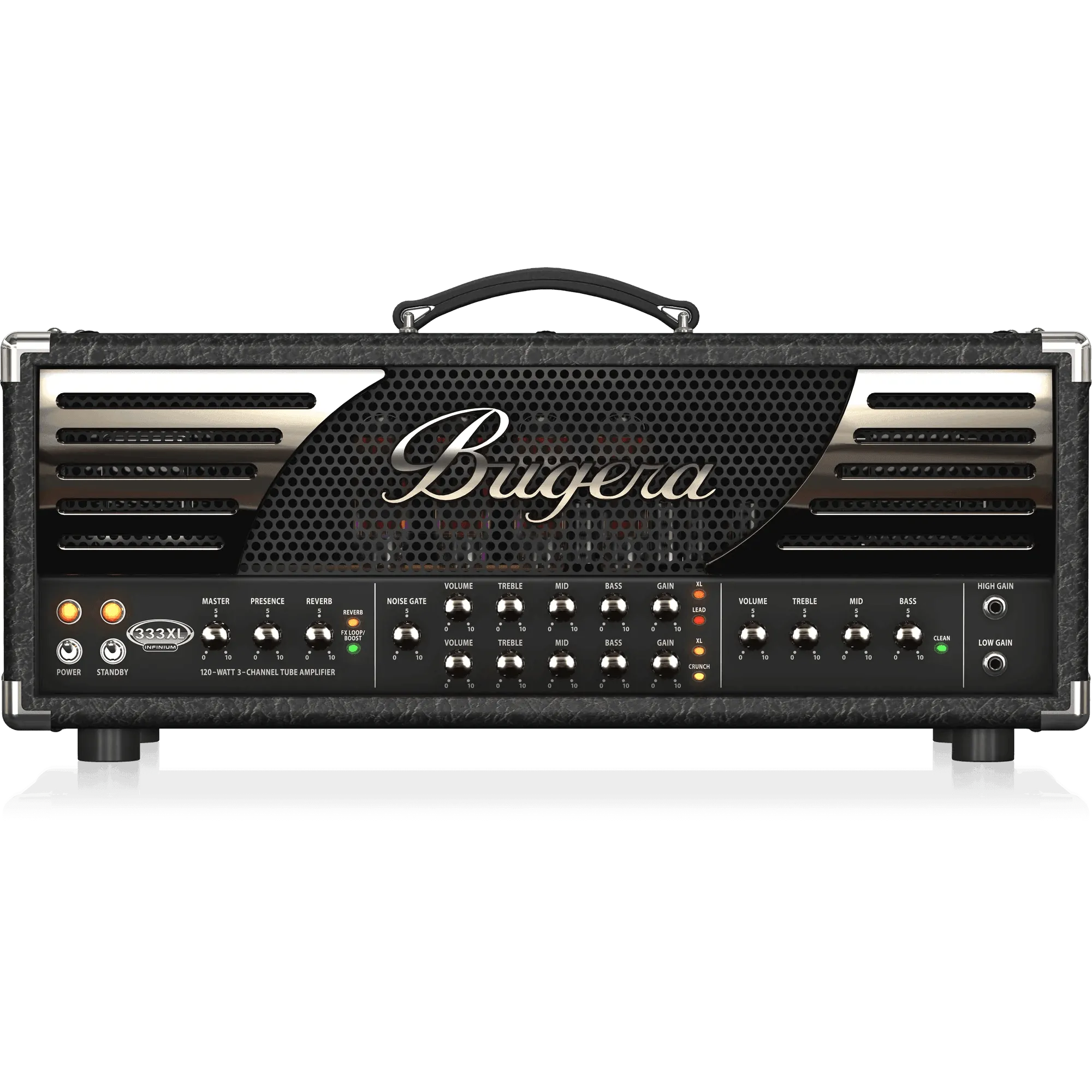

he 333XL INFINIUM is a cutting edge, modern-style tube guitar amp designed for use in any situation or genre – the harder the better. The name says it all 3 - 3 - 3; three fully independent channels for three fully independent gain structures and tone stacks.
The 333XL INFINIUM takes it up a notch – 4 notches to be exact, with the addition of an overall active Presence control; a very-effective analog Noise Gate on the Lead channel; EL34 power tubes for a more compressed midrange (also compatible with a variety of output tubes); and an XL switch on the Crunch and Lead channels that adds serious bottom-end to your tone.
Our revolutionary INFINIUM Tube Life Multiplier technology watches your tubes like a hawk, ensuring you get all the tone, all the time – and your tubes live a long and healthy life! Add to this an assignable, high-class Reverb; remote-controllable FX Loop; and switchable power amp damping, and you’ve got one awesome tone machine – the 333XL INFINIUM!
SPECIFICATIONS
Preamp Section
|
Tubes |
|
|
Type |
1 x 12AX7A 1 x 12AX7B 2 x 12AX7C |
|
HI Input |
|
|
Type |
¼" TS, unbalanced |
|
Impedance |
appr. 470 kΩ |
|
LO Input (333XL and 333XL-212 only) |
|
|
Type |
¼" TS, unbalanced |
|
Impedance |
appr. 44 kΩ |
|
Attenuation |
6 dB |
|
Effects Send |
|
|
Type |
¼" TS jack, unbalanced |
|
Impedance |
appr. 470 Ω |
|
Output level |
adjustable |
|
Effects Return |
|
|
Type |
¼" TS jack, unbalanced |
|
Impedance |
appr. 15 kΩ |
|
Input Level |
adjustable |
|
Line Output |
|
|
Type |
¼" TS jack, unbalanced |
|
Impedance |
6.5 kΩ or higher |
|
Level |
adjustable |
Power Amp Section
|
Tubes |
|
|
Type |
4 x EL34 |
|
Infinium |
|
|
Tube Life Monitoring (biasing) |
4 x 32 mA |
|
Output Power |
|
|
Peak power |
120 W |
|
Loudspeaker Connectors |
|
|
Type |
2 x ¼" TS jacks, unbalanced |
|
Load impedance |
4 Ω / 8 Ω / 16 Ω, switchable |
Power Supply / Voltage (Fuses)
|
USA / Canada |
120 V~, 60 Hz (T 3.15 A H 250 V) |
|
UK / Australia / Europe |
230 V~, 50/60 Hz (T 1.6 A H 250 V) |
|
Korea / China |
220 V~, 50/60 Hz (T 1.6 A H 250 V) |
|
Japan |
100 V~, 50/60 Hz (T 3.15 A H 250 V) |
|
Power consumption |
200 W |
|
Mains connection |
Standard IEC receptacle |
Dimensions / Weight
|
Dimensions (H x W x D) |
appr. 275 x 680 x 250 mm (10.8 x 26.8 x 9.8") |
|
Weight |
appr. 21.5 kg (47 lbs) |
